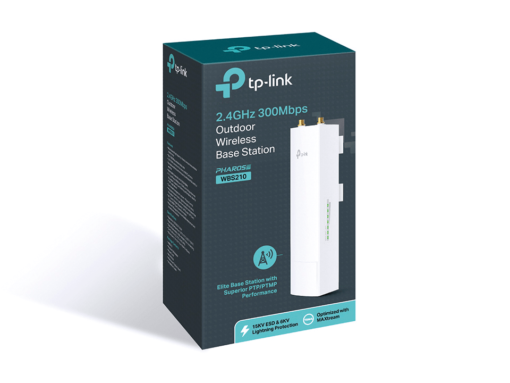

TP-Link WBS210 2.4GHz 300Mbps Outdoor Wireless Base Station
8,999.00 ₹
- Broad operating frequency channels ensure less wireless interference
- Wireless N speed up to 300Mbps
- Selectable bandwidth of 5/10/20/40MHz
- Adjustable transmission power from 0 to 27dBm/500mW
- 2 RP-SMA connectors for external MIMO antenna
- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 30Km+
- 1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
- Centralized Management System – Pharos Control
- Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
- Weatherproof enclosure, 15KV ESD and 6KV lightning protection
Specifications :
HARDWARE FEATURES
| Processor | Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0/POE) |
| 1 10/100Mbps Shielded Ethernet Port (LAN1) | |
| 2 RP-SMA | |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Dimensions ( W x D x H ) | 198 x 74 x 40 mm |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IP65 water and dust proof Certification |
WIRELESS FEATURES
| Wireless Standards | IEEE 802.11b/g/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) | |
| Up to 72.2Mbps (10MHz,Dynamic) | |
| Up to 36.1Mbps (5MHz,Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Note: Available operating frequency may vary depending on the limitation of the contries or regions in which the device is used. | |
| Transmission Power | 27dBm/500mW (Adjustable power by 1dBm) |
| Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
SOFTWARE FEATURES
| Operating Modes | AP / Client / Bridge /Repeater |
| AP Router Mode / AP Client Router(WISP Client) Mode | |
| Network Configuration | WAN: Static/Dynamic/PPPoE/L2TP/PPTP |
| LAN: Static/Dynamic/Dynamic/DHCP | |
| Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger | |
| Security: SPI Firewall/Ping Forbidden/VPN/DOS Protection | |
| Access Control | |
| Static Routing | |
| Bandwidth Control | |
| IP & MAC Binding | |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| 802.11b/g/n Modes | |
| Selectable Channel Width: 5/10/20/40MHz | |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| > Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/ | |
| Short GI/Wi-Fi Multimedia | |
| Management | Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management | |
| System Log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| System Tools | Wireless Signal Quality Indicators: |
| Signal Strength/Noise/Transmit CCQ/CPU/Memory | |
| Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| System-level Optimizations | 802.11b/g/n Tx beamforming technology |
| Optimized IGMP Snooping/Proxy for multicast applications | |
| Hardware watch dog |
OTHERS
| Certification | CE, FCC, RoHS, IP65 |
| Package Contents | Outdoor Wireless Base Station |
| 24V 1A Passive PoE Adapter | |
| Pole Mounting Kit | |
| AC Power Cord | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. | |
| Environment | Operating Temperature: -30°C~70°C (-22℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing |
