TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
12,999.00 ₹
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Free Omada Controller software enables administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Specifications :
HARDWARE FEATURES
| Interface | Gigabit Ethernet (RJ-45)Ports (Support 802.3af PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE |
| (PoE Adapter Included with 1 LAN Port + 1 LAN PoE Port) | |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |
| Antenna | 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
WIRELESS FEATURES
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) |
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) | |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b: 1, 5.5, 11Mbps | |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control （Adjust Transmit Power on dBm） | |
| QoS(WMM) | |
| MU-MIMO | |
| Airtime Fairness | |
| Beamforming | |
| Band Steering | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Mesh (802.11s) | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| Transmission Power | CE:=27dBm(2.4GHz,EIRP),=32dBm(5GHz,EIRP) |
| FCC:<30dBm(2.4GHz, EIRP),<30dBm(5GHz, EIRP) |
MANAGEMENT
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
OTHERS
| Certification | CE, FCC, RoHS |

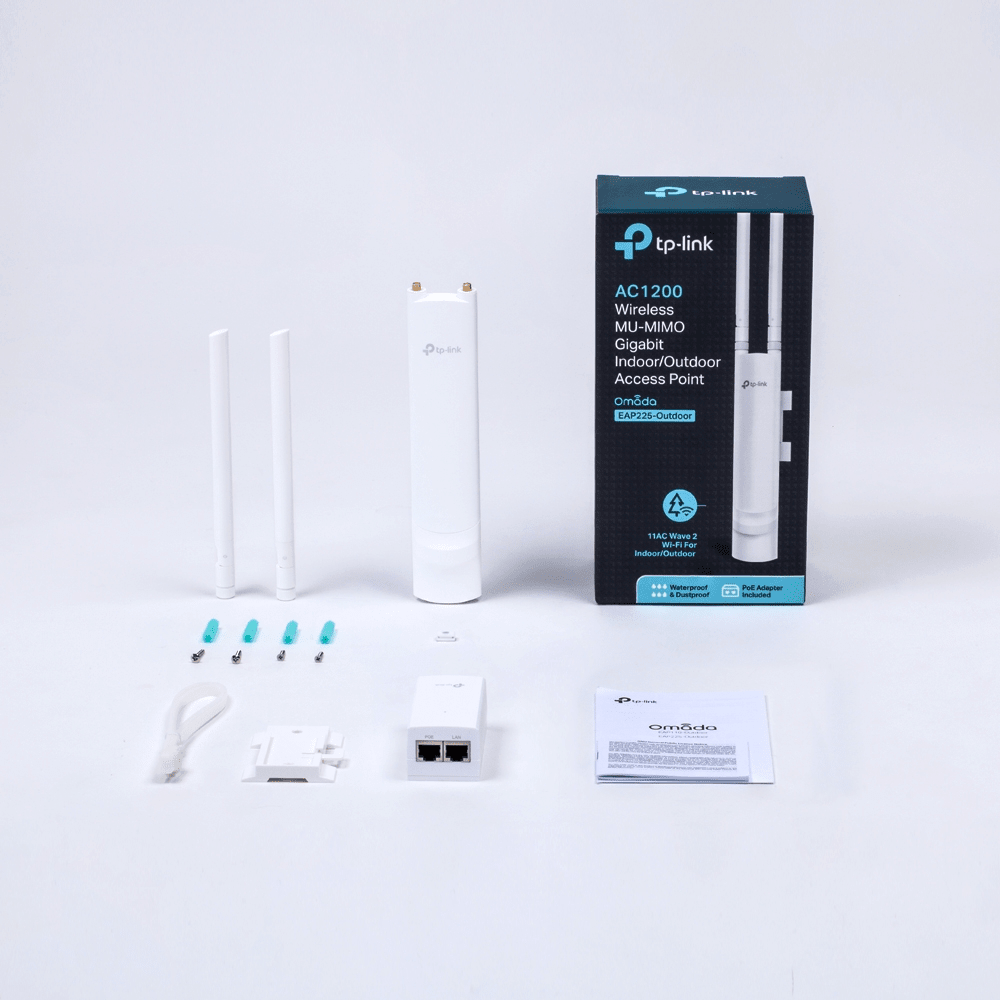

| Package Contents | AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point |
| EAP225-Outdoor | |
| Power Adapter | |
| Mounting Kits | |
| Installation Guide | |
| Environment | Operating Temperature: -30℃~70℃ (-22℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing |
