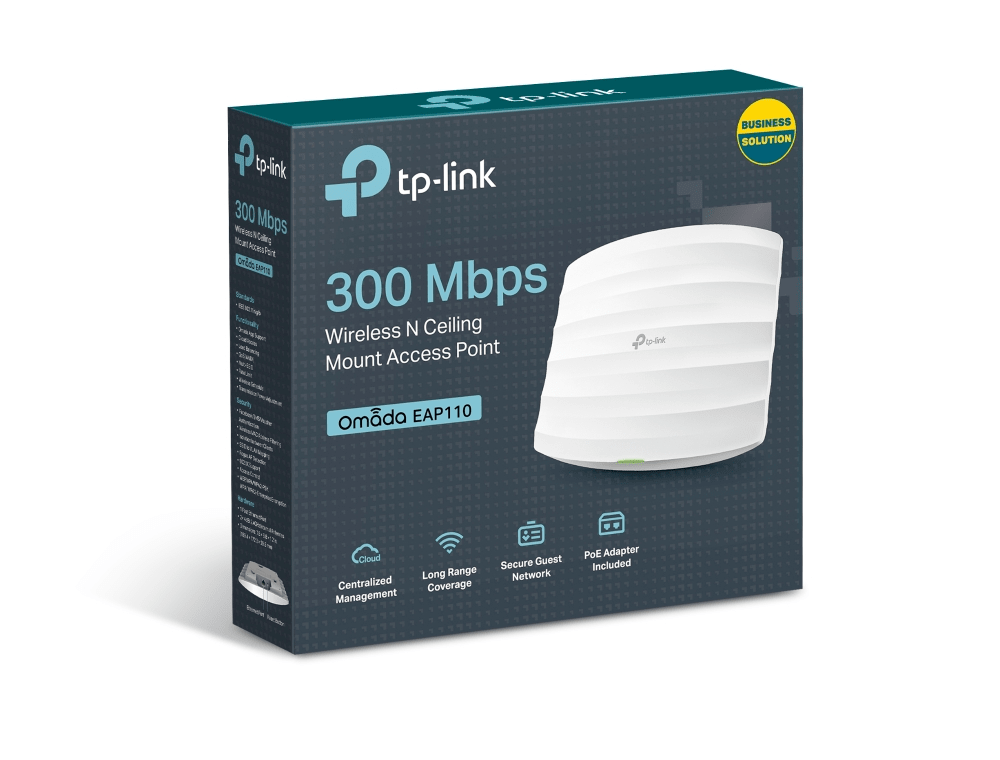

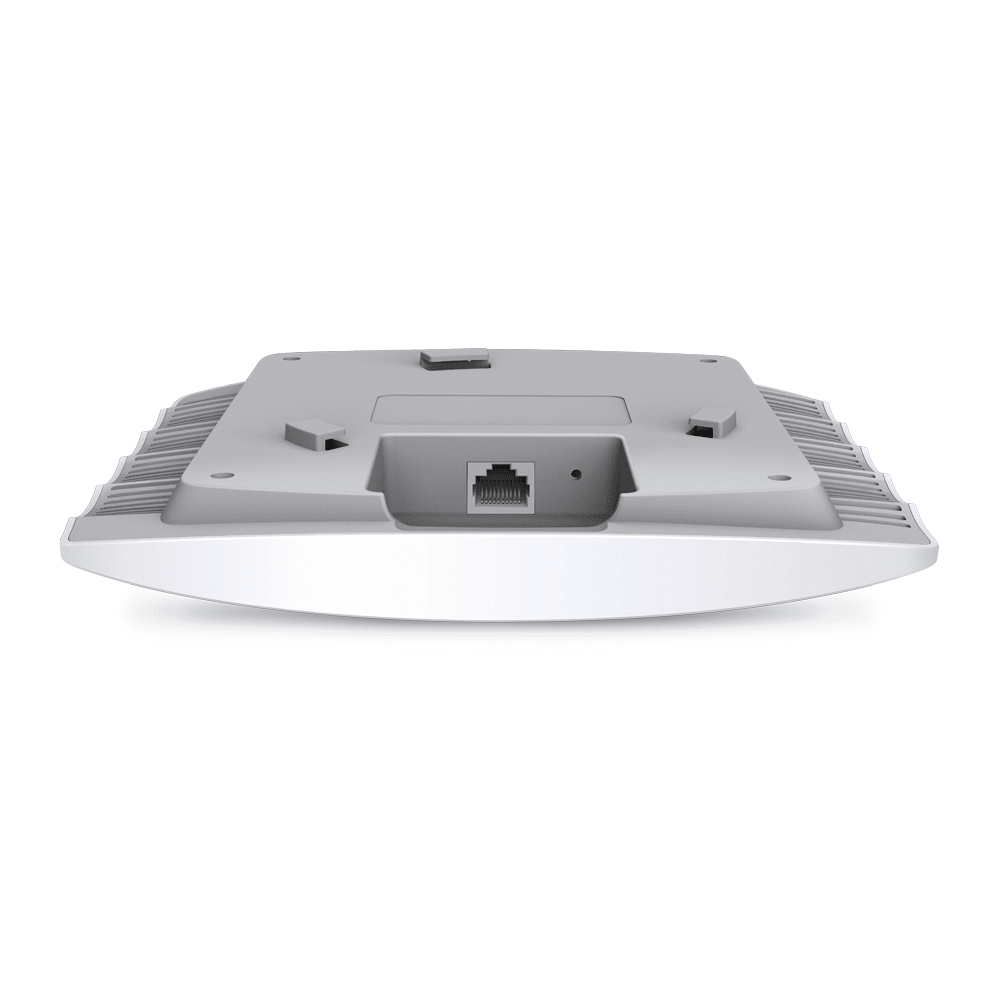

TP-Link EAP 110 300Mbps Wireless N Ceiling Mount Access Point

4,999.00 ₹

EAP Controller Software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100 meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats

Category: Access Point

Specifications :

Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Physical Security Lock	Kensington Lock Slot
Button	Reset
Power Supply	24VDC / 1A Passive PoE Supply
Power Consumption	7.7W
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.1 x 7.1 x 1.9 in. (18018047.5mm)
Dimensions	7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Antenna Type	Internal 2* 3dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
Watch Dog	Yes

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic)
	11g: Up to 54Mbps(dynamic)
	11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER
	150M: -75dBm@10% PER
	54M: -78dBm@10% PER
	11M: -93dBm@8% PER
	6M: -92dBm@10% PER
	1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs）
	Enable/Disable Wireless Radio
	Automatic Channel Assignment
	Transmit Power Control （Adjust Transmit Power on dBm）
	QoS(WMM)
	Rate Limit
	Reboot Schedule
	Wireless Schedule
	Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication
	Access Control
	Wireless Mac Address Filtering
	Wireless Isolation Between Clients
	SSID to VLAN Mapping
	Rogue AP Detection
	802.1X Support
	64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE:
	<20dBm
	FCC:
	<26dBm

Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller
	• Omada Hardware Controller (OC300)
	• Omada Hardware Controller (OC200)
	• Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
EAP Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
SSH	Yes
Web-based Management	HTTP/HTTPS
Management VLAN	Yes

Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP110
	Passive PoE Adapter,
	Power Cord,
	Mounting Kits,
	Resource CD
	Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
