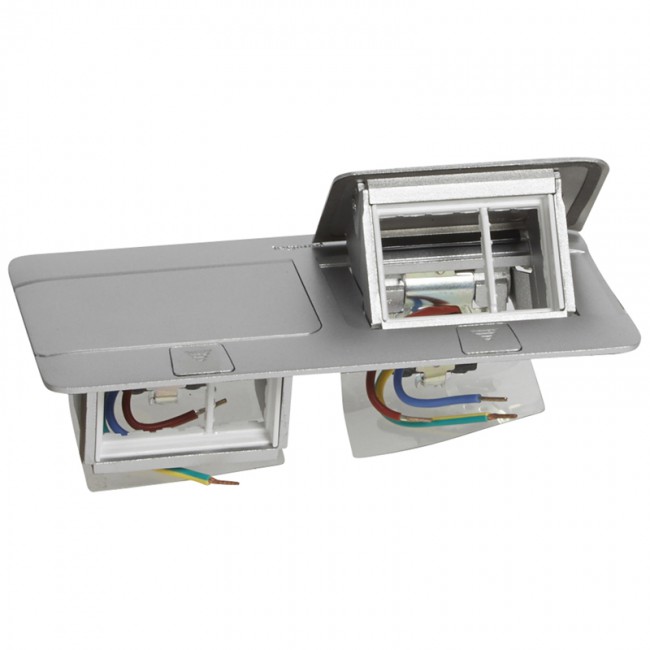

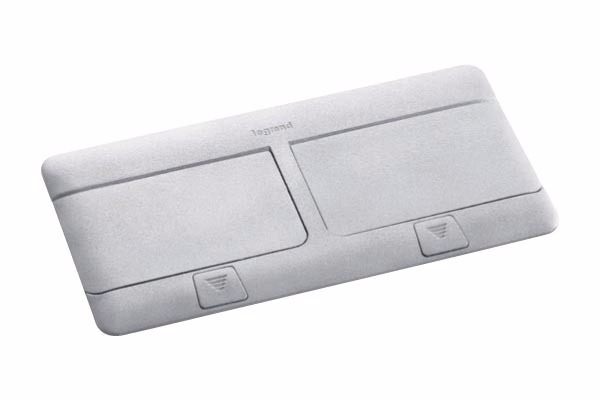

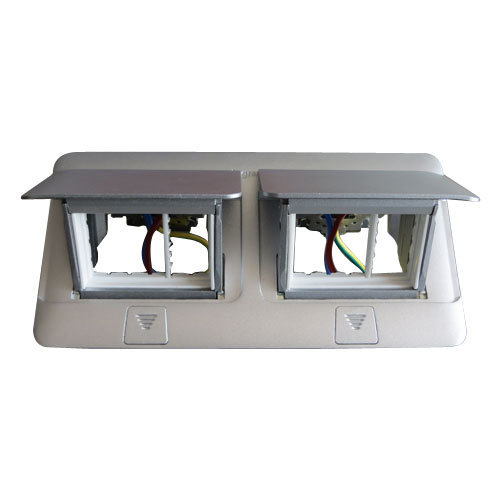

Legrand Hydraulic Pop Up Box 6 Module

Slim design for perfect integration into the floor or office furniture

Soft opening for enhanced comfort and safety

Equipped with “push and slide” locking system to avoid accidental opening by feet

Specifications:

Finish: Matt Aluminum
Material: Aluminum (Resistant to corrosion and to the changes of temperature)
Module: 6
Connection: Plug & Play
Available Ports – all audio visual and electrical ports. Customization- Available
Cut Out: 108mm x 218mm
Out to Out: 120 mm x 230 mm
Protection against mechanical impact- 1K07
Degrees of protection provided by enclosure- iP30 open – iP40 closed.
Resistance to vertical load applied through small surface area – 1500N open – 3000N closed.
Installation on the floor: to be installed on floor subjected to a dry treatment
Safety: Must earth the system
